CP steel pit pit-less concrete weighbridge

Steel concrete weighbridge.


Overall height 390 mm
Type pit or pit less
Driving surface concrete
Dimensions from 6 to 36m (other dimensions on request)
Capacities 60-100t (other capacities on request)

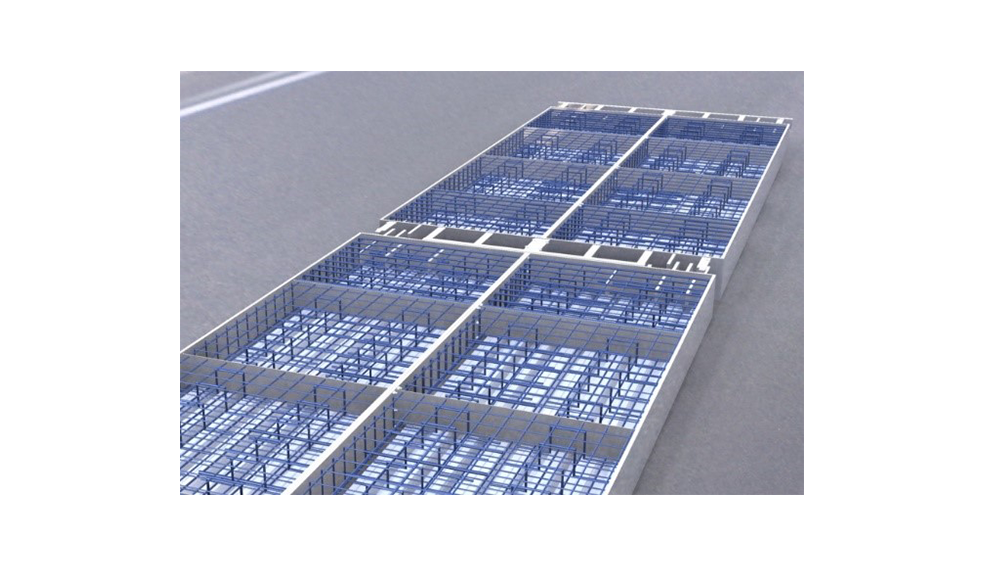

Structure Consists of 6-8 modules(18m), to be bolted on site containing steel shutters and reinforced bars
Removable cover plates above each loadcell
Type of loadcells Flintec RC 3 30t (optionally other brand loadcells on request)
Loadcells buffering system Adequate lateral and longitudinal bumper arrangement without the use of mechanical constrainer, check/tie rods, yolk.
Type of crane for installation Any 3t crane
Transportation By normal TIR truck or sea container
